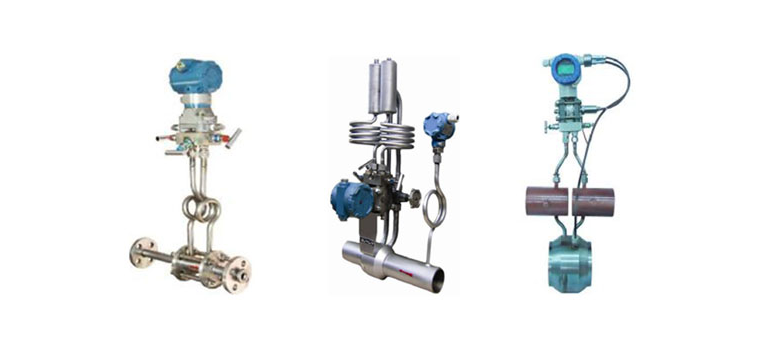

Orifice plate flowmeter is the standard orifice plate and multi-parameter differential pressure transmitter (or differential pressure transmitter, temperature transmitter and pressure transmitter) supporting the composition of the high range ratio of differential pressure flow device, can measure the flow of gas, steam, liquid and natural gas.

Throttling device is used for fluid flow measurement, and differential pressure meter or differential pressure transmitter supporting the composition of differential pressure flowmeter. The flowmeter is used for flow measurement, control and adjustment of fluids (liquid, gas and steam) in the production process of petroleum, chemical, metallurgy, electric power, textile, food, military, scientific research and other industrial sectors. It has the advantages of simple structure, easy maintenance, reliable use, stable performance, measurement accuracy and so on, therefore, it is widely used in various industrial sectors, it accounts for about 70% of the whole flow meter.

Our company produces throttle devices: standard orifice plate, ISA1932 nozzle, long-neck nozzle and venturi dozens of varieties. Its technical conditions are in line with the national standard GB/T2624 and international standard ISO5167.

Standard Orifice Plate Characteristics

It is characterized by high measurement accuracy, easy installation, wide range of use and low cost. Widely used in a variety of media flow measurement.

The components of the orifice plate flowmeter mainly include the orifice plate, the inlet and outlet fluid pipes, pressure difference sensors and so on. When working, the fluid enters the orifice plate from the inlet fluid pipe, forms turbulent flow through the holes of the orifice plate, flows out of the orifice plate and enters the outlet fluid pipe. In this case, the fluid forms a pressure difference on the orifice plate, and the pressure difference sensor will measure this pressure difference, so as to calculate the size of the fluid flow.
The orifice plate is the core part of the orifice plate flowmeter, which usually consists of a circular hole and a sloping wall with a certain angle. As the fluid passes through the hole, a pressure loss is created in the fluid due to the presence of the orifice plate, creating a high pressure area and a low pressure area. This pressure difference is due to the rapid deceleration of the high-speed flowing fluid after passing through the orifice, creating an increase in velocity and a decrease in pressure.
--------------------------------------------------------

Shanghai Vision Energy Technology Co., Ltd has been focusing on the recovery and reuse of rare gas waste gas in domestic and international photovoltaic, semiconductor and chemical industry for many years, and has a number of core independent patents;

We are a qualified supplier of many multinational companies, domestic listed companies, central enterprises and top scientific research institutions.

Our customer's Contract satisfaction rate is 100%, and there is no any lawsuit and dispute.

We can provide customers with large or standard argon recovery devices.

What we stand for

Safe, environmentally friendly, and treating exhaust gases not as useless emissions but as a resource to be utilized

Our products pursue

Exhaust gas recycling and reuse can be done better than new purchase because:
1. Safe and environmentally friendly
2. Stable purity
3. Reliable supply
4. Lower cost

Main Business Segments

Gas Recycling Business - Helping Customers Reduce Costs and Increase Efficiency
Including: Argon AR, Hydrogen H2, Neon Ne, Helium He, Xenon Xe, Krypton Kr, natural gas LNG supply and recovery;

Exhaust gas treatment business - helping customers to save energy and reduce emissions
Includes: VOCs treatment business for coating industry exhaust, chemical industry exhaust, printing and dyeing industry exhaust; Meets China's national standards as well as local standards.

Wastewater treatment business -providing more economical solutions
Includes: wastewater treatment for industrial and mining enterprises, meeting China's national and local standards.
